Negentec Shuttleless Loom Heald (Film Type)

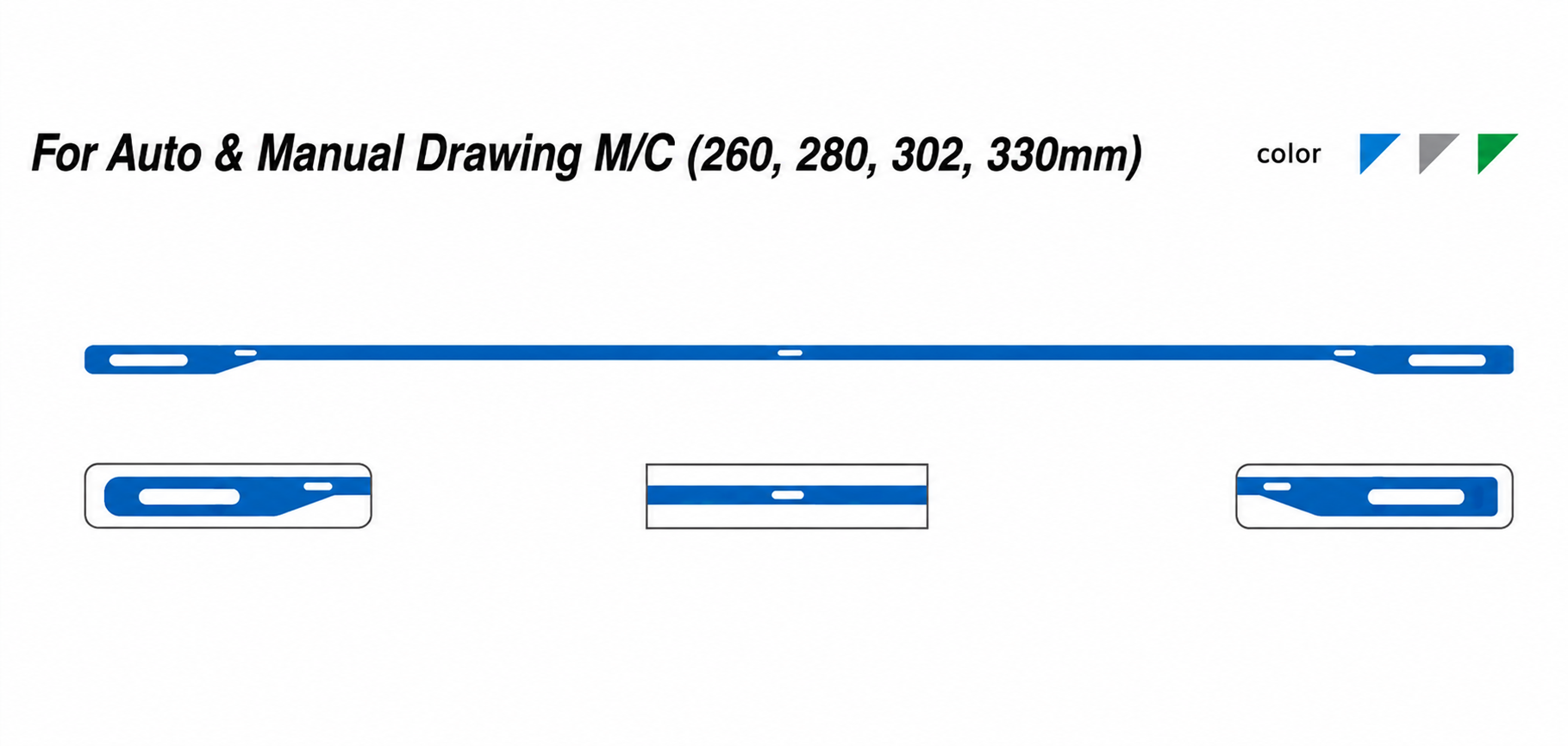

Negentec Film Type Heald for Shuttleless Looms - Water Jet, Air Jet, Rapier

Film Type Heald - Durable plastic heald for general weaving applications

Negentec Shuttleless Loom Heald (Film Type)

The Film Type Heald is manufactured using Negentec's self-developed film slicing process, specifically engineered for general weaving applications on Air Jet and Water Jet looms. With improved thickness control and reduced slope troubles during weaving, this heald delivers superior weavability and minimal inferiority rate for fine fabric production.

⭐ Key Features

  • Excellent Durability - Manufactured with differentiated engineering plastic materials for extended service life. Life span is similar to or longer than stainless steel heald.
  • World-Class Quality - Maintained through strict quality control and decades of manufacturing experience
  • Various Specifications - Multiple thickness options (0.27mm - 0.75mm) to match different fabric densities and weaving requirements
  • Color Options - Standard blue with custom colors available for special orders
  • EASY EYE Technology - Optimized eyelet design for higher usability in high-density weaving
  • Lightweight - Only 25-30% the weight of stainless steel heald, reducing machine load and energy consumption
  • STAUBLI Certified - Compatible with STAUBLI automatic drawing-in machines for automated yarn threading to ensure precision threading at high speed.

💎 4 Key Advantages of Plastic Heald

💰 PRICE ADVANTAGE

Competitive pricing with long-term cost savings through reduced maintenance, lower energy consumption, and extended service life compared to metal healds.

⚡ INCREASE RUNNING EFFICIENCY

Lightweight design enables higher loom speeds (~1000 RPM or faster) with reduced inertia, improving overall production efficiency and fabric quality.

ðŸŠķ LIGHT WEIGHT

Only 25-30% the weight of stainless steel heald. Reduces load on shedding motion, dobby parts, and overall machine energy consumption.

ðŸŒŋ GOOD WORKING ENVIRONMENT

Quieter operation compared to metal healds. Reduced noise pollution creates a safer and more comfortable working environment for operators.

📊 General Specifications

SpecificationDetails
Material Engineering Film (High-Performance Polymer)
Warp Yarn Range 0 - 100 Denier (0.25mm thickness) | 0 - 300 Denier (0.30mm thickness)
Eyelet Size 5.5 × 1.2 mm
Weaving Density 23 - 30 ends/cm (High-Density Weaving)
Standard Color Blue (Custom colors available on request)
Heald Types O Type
Manufacturing Process Film Slicing (Self-Developed Process by Negentec)

Complete Specifications

Thickness
(mm)		Available Lengths (mm)Eyelet
(mm)		Density
(ends/cm)		Warp
Denier		Auto
Drawing
260mm280mm302mm330mm
0.25mm ✅ ✅ ✅ ✅ 5.5 × 1.2 30 0 - 100 ✅
0.30mm ✅ ✅ ✅ ✅ 5.5 × 1.2 23 0 - 300 ✅

Note: By diversifying thickness and color of film fabrics, Negentec has broadened the range of selection for high-density weaving applications.

Benefits for Textile Mills

ROI & Cost Savings:

  • 📉 Reduced Yarn Breakage - Smooth eyelet surface minimizes friction and yarn damage
  • ⚡ Energy Savings - Lightweight design reduces machine power consumption
  • 🔧 Lower Maintenance - Less wear on shedding motion and dobby parts
  • 🔇 Noise Reduction - Quieter operation compared to metal heald
  • ⏱ïļ Longer Service Life - Extended replacement intervals reduce downtime
