Negentec Jacquard Heald

Negentec Jacquard Heald Features for Electronic Jacquard Machines

Jacquard Heald - Spring set for electronic Jacquard machines

Negentec Jacquard Heald - Electronic Jacquard Machine Components

The Jacquard Heald is a complete spring set for electronic Jacquard machines, manufactured with high-quality springs and plastic parts. Based on advanced plastic longitudinal-optical technology, Negentec successfully developed the world's first plastic longitudinal-optical electronic Jacquard, delivering excellent durability and workability for complex pattern weaving.

Key Features

  • Complete Spring Set - Includes heald, spring, low pin, and tube for complete electronic Jacquard system
  • World's First Technology - First plastic longitudinal-optical electronic Jacquard in the world
  • High-Quality Components - Manufactured with premium springs and engineering plastic parts
  • Excellent Durability - Long service life with consistent performance
  • Superior Workability - Smooth operation on electronic Jacquard machines
  • 2 Types Available - High-Density and Middle-Density types for different fabric requirements, plus Refit Heald for machine retrofit applications

Spring Set Components

The Jacquard Heald spring set consists of four integrated components that work together to ensure precise and reliable operation on electronic Jacquard machines:

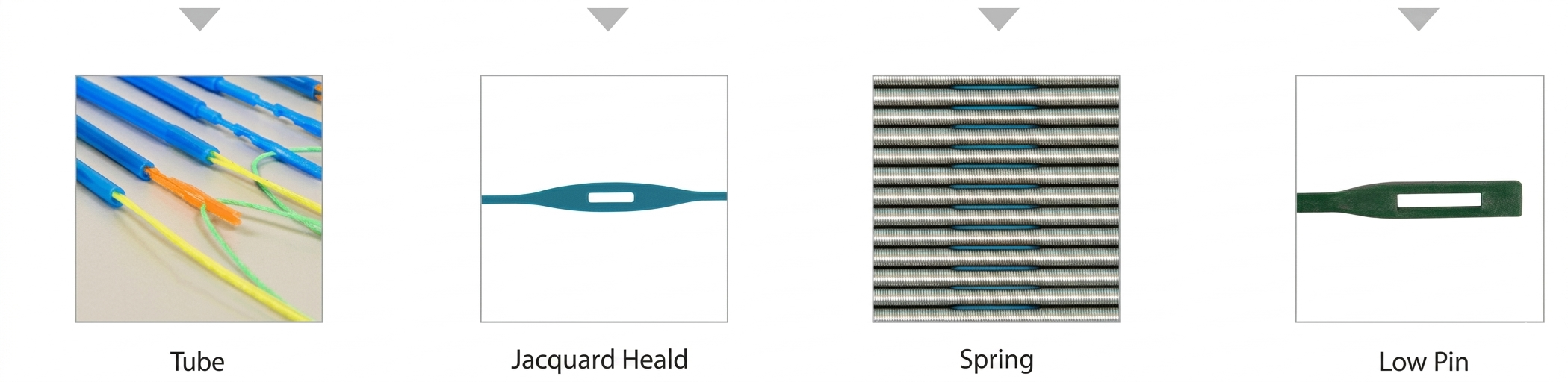

Jacquard Heald Spring Set Diagram - Heald + Spring + Low Pin + Tube

Spring Set: Tube + Jacquard Heald + Spring + Low Pin

Tube

Protective housing that guides and stabilizes the spring assembly

Jacquard Heald

Primary component that controls warp yarn movement for pattern formation

Spring

Provides consistent tension and return force for precise heald movement

Low Pin

Connection point that secures the spring system to the Jacquard mechanism

3 Types Available

Negentec offers three types of Jacquard Heald to meet different fabric density requirements and machine specifications:

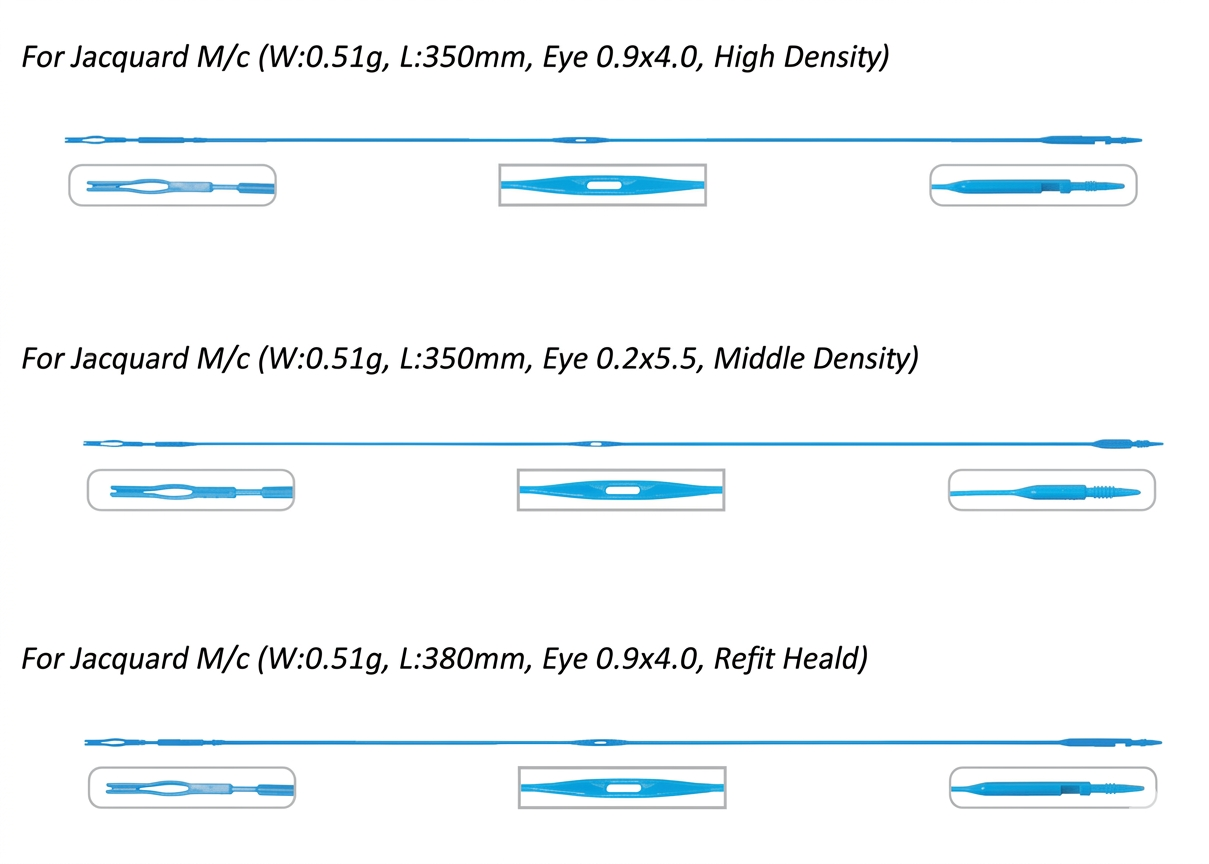

TypeWeightLengthEye SizeApplication
High Density 0.51g 350mm 0.9 × 4.0 mm Fine fabrics with complex patterns and high thread count. Ideal for premium textiles and intricate designs.
Middle Density 0.51g 350mm 0.2 × 5.5 mm Standard fabrics with regular pattern complexity. Suitable for everyday textiles and apparel fabrics.
Refit Heald 0.51g 380mm 0.9 × 4.0 mm Specialized heald for machine retrofit and replacement applications.

Applications

Jacquard Heald is specifically designed for electronic Jacquard weaving machines that produce fabrics with intricate patterns and designs. Common applications include:

  • Complex Pattern Weaving - Intricate designs that require individual warp yarn control
  • Decorative Textiles - Tapestries, damasks, and ornamental fabrics
  • Apparel Fabrics - Fashion textiles with woven patterns
  • Home Textiles - Curtains, upholstery, and decorative home fabrics
  • Technical Textiles - Specialized fabrics with specific pattern requirements
