Ichinose COLOR WEIGH - Fully Automated Color Paste Preparation System for Textile Printing Production

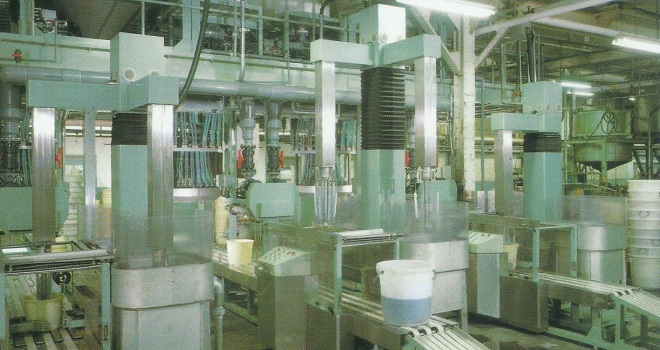

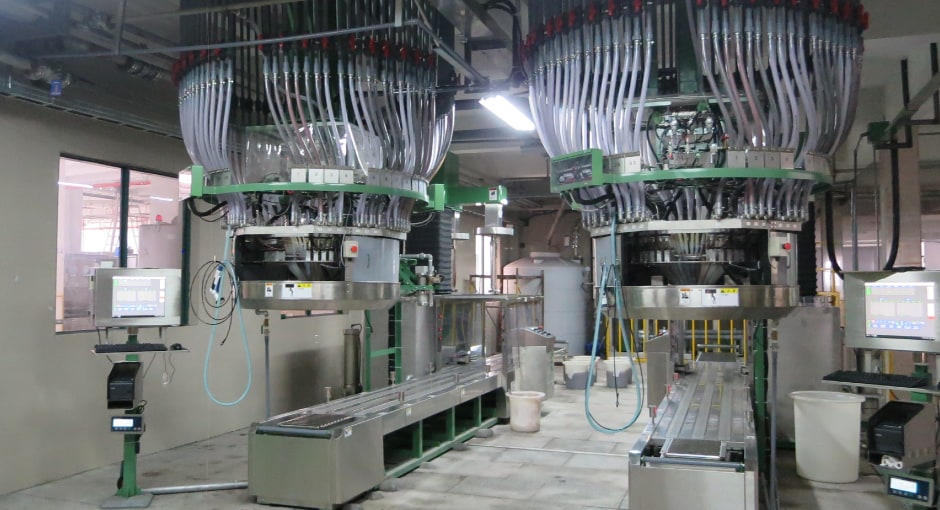

COLOR WEIGH is a fully automated color paste preparation system designed for textile printing production. By completely automating the use of resists and colorants, COLOR WEIGH delivers superior reproducibility and significant cost reduction while eliminating human error in the color mixing process.
Ideal for textile mills and printing facilities requiring consistent color quality, precise recipe reproduction, and efficient production workflow. Perfect for screen printing, rotary printing, and other textile printing applications demanding exact color matching.
COLOR WEIGH transforms color paste preparation from a manual, error-prone process into a fully automated, precision-controlled operation. The system delivers measurable improvements in quality, efficiency, and cost savings.
Equipped with a high-precision electronic balance that achieves exceptional weighing accuracy. Every gram of colorant is measured precisely according to recipe specifications, ensuring consistent color formulation batch after batch.
Reliable, repeatable colors that are not affected by the volume of colorant solution used. Whether producing small batches or large volumes, COLOR WEIGH ensures exactly the same color every time, eliminating shade variations and customer complaints.
With this system, you can create colorants that are formulated exactly the same way, time after time. The automated system follows recipe data precisely, eliminating human error and ensuring 100% recipe accuracy.
Produce precisely the amount of colorant you need, exactly when it is required. No more wasted colorant from over-mixing or production delays from under-mixing. The system prepares color paste in any amount at any time based on real-time production needs.
Create colorant as and when needed, based on instructions issued by a host computer. The system integrates with your production management software, enabling scheduled, automated color paste production without manual intervention.
The burden on workers is greatly reduced, thanks to the fully automatic bucket transfer conveyor and two-headed mixer. The dual-head mixer system enables continuous operation - while one mixer is blending color paste, the other can be cleaned for the next batch. This eliminates downtime between mixing cycles and significantly reduces operator workload.
COLOR WEIGH automates the entire color paste preparation process through an integrated system of precision weighing, automated dispensing, and intelligent control.
| Specification | Details |
|---|---|
| Volume of Colorant Solutions | 5 to 50 liters (standard), MAX 500 liters |
| Dispenser | Maximum 40 types/lines |
| Number of Master Liquids | Maximum 40 kinds |
| Master Liquid Tank Capacity | 10L to 500L (standard) |
| Unfilled Master Colorant Number | Maximum 40 colorants |
| Volume Adjustability | 20 buckets/hour (in 50L buckets)* |
| Weighing System | High-precision electronic balance |
| Transfer System | Fully automatic bucket conveyor |
| Mixing System | Dual-heads mixer |
| Control System | Host computer integration |
*Varies depending on conditions
COLOR WEIGH is specifically designed for textile screen printing color paste preparation, supporting both flat screen printing and rotary screen printing machines.
Over 50 years of Ichinose (Toshin Kogyo) expertise in textile printing machinery. COLOR WEIGH is built with precision engineering and rigorous quality control, manufactured in Japan with world-class standards.
Significant cost savings through reduced colorant waste, lower labor requirements, and eliminated rework from color variations.
