Hisaka EDICS - Automatic Setting System

Hisaka EDICS (Automatic Setting System) is an advanced control system that enables "everyone" to perform the same condition "every operation". By connecting the EDICS Panel with the dyeing machine Control Panel, EDICS automates parameter setup, records operating conditions, and ensures consistent reproducibility across all batches and operators, eliminating human differences in dyeing operations.

Key Benefits

✓ Automatic Parameter Setup

Automatic setup of various parameters eliminates manual configuration errors. The system automatically configures temperature, pressure, flow rate, reel speed, and other critical parameters based on predefined recipes, ensuring consistent setup across all batches.

✓ Repeatable Operating Conditions

Fixed operating conditions can be recorded and realized repeatedly. Once optimal parameters are established, EDICS stores and reproduces them exactly, ensuring batch-to-batch consistency regardless of which operator runs the machine.

✓ Integrated Information Transmission

Information transmission via EDICS to original Control Panel enables seamless data flow between Admin PC, EDICS Panel, and dyeing machine. Real-time feedback and data logging support process optimization and quality tracking.

EDICS System Features

⚙️ Operating Condition Automation

Automates and simplifies the setup of dyeing parameters, reducing operator workload and eliminating configuration errors.

📊 Operating Condition Feedback

Real-time feedback of actual operating conditions enables monitoring and verification of process parameters.

📝 New Condition Setting Support

Supports development and implementation of new dyeing conditions with data-driven insights and documentation.

🔧 Maintenance Structure

Built-in maintenance features support system health monitoring and proactive equipment care.

Automated Controls

EDICS provides precise automatic control of six critical dyeing parameters:

🌡️ Temp. Accuracy Control

Temperature Automatic Correction with Thermo-resistance Bulb and Sequencer Unit ensures precise temperature control throughout the dyeing cycle.

🔄 Reel Speed/Torque Control

Reel Setting automation controls fabric movement speed and torque for consistent fabric handling.

📏 Control Fabric Length

Counter Registration tracks and controls fabric length for accurate batch processing.

💧 Fluid Velocity/Nozzle Pressure

Main Pump Frequency Control regulates fluid velocity and nozzle pressure for optimal dye liquor circulation.

📊 Fluid Volume Control

Flow Meter monitoring ensures precise liquor ratio and volume control.

⚡ Suction Setting Control

Auto Suction Valve with variable open level, indication, and alarm confirmation for automated suction control.

System Architecture

EDICS connects three key components for seamless data flow and control:

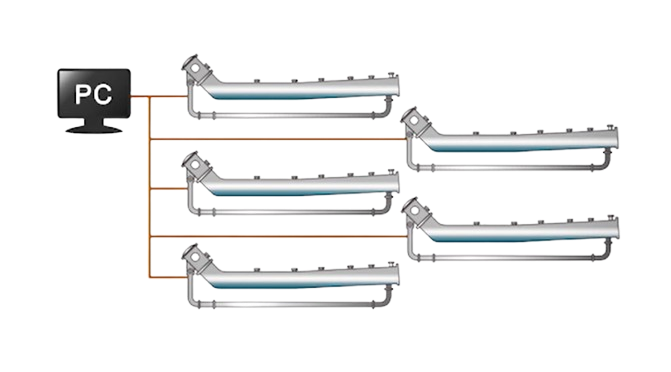

Admin PC - Runs EDICS Record Control software with dedicated installation. Creates and manages process data (instruction sheets) and receives actual operation data for analysis and record-keeping.
EDICS Panel - Connected via LAN cable to Admin PC. Reads process data and inputs actual operation data. Serves as the interface between management system and machine control.
Control Panel for Dyeing Machine - Connected via dedicated cable to EDICS Panel. Directly controls the dyeing machine based on parameters received from EDICS, ensuring accurate execution of dyeing programs.

Applications

Hisaka EDICS is ideal for dyeing facilities that:

Require batch consistency - Eliminate operator differences and ensure reproducible results
Have multiple shifts/operators - Standardize operations across all personnel
Want to reduce setup errors - Automatic parameter configuration prevents manual mistakes
Need process documentation - Complete data logging for quality tracking and troubleshooting
Seek operational efficiency - Faster setup times and reduced operator intervention
